MK4c 4-Axis Breakout Controller
Overview

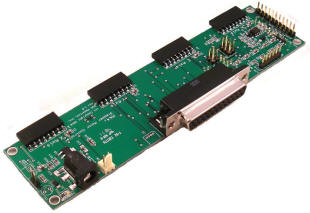

The MK4c is a 4-Axis breakout controller
with a DB25 PC compatible input port, five limit switch inputs and four
auxiliary open collector outputs.
The MK4cp is similar to the MK4c but with two High Power Mosfets capable of
3A output.

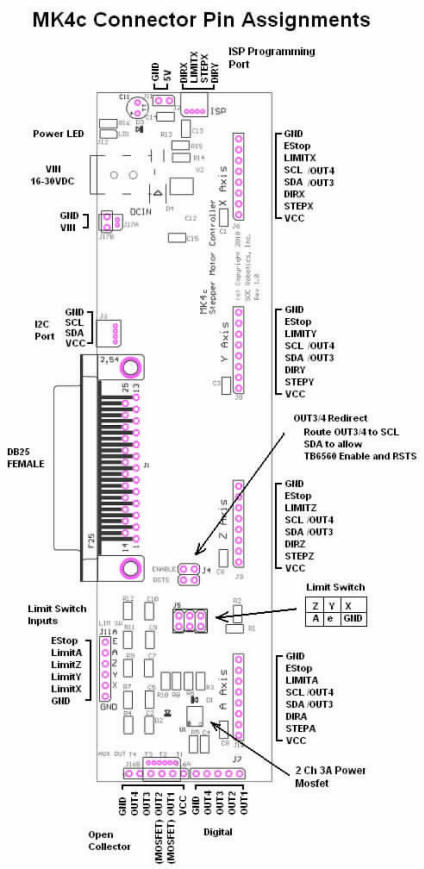

The picture below shows the MK4c
connector pin assignments.

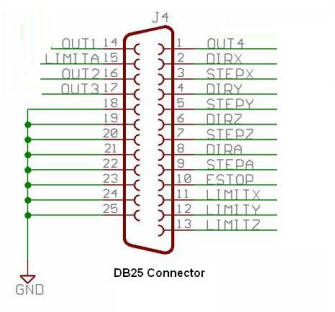

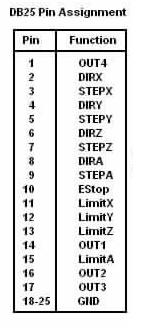

MK4c DB25 pin assignments.

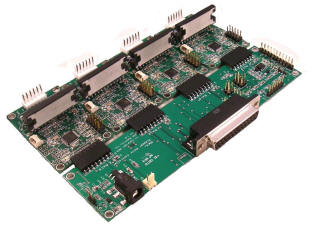

MK4c with four MM165 bipolar drivers
attached.
|
|
|
|
|
Pricing - Availability |
| MK4
$32.95 |
| |
| |
|
|
Ordering |
| The MK4c is
available as a standalone board. |
Product Codes:
MK4 BUY
|
|
|
