Overview
The MS12 is a specially magnetized dipole magnetic material strip with adhesive back that is used in conjunction with the MS23 or MS25U sensor head to measure linear position with a resolution of 2 micron.

Features
    o  Magnetized 2mm dipole strip
    o  Cut to length

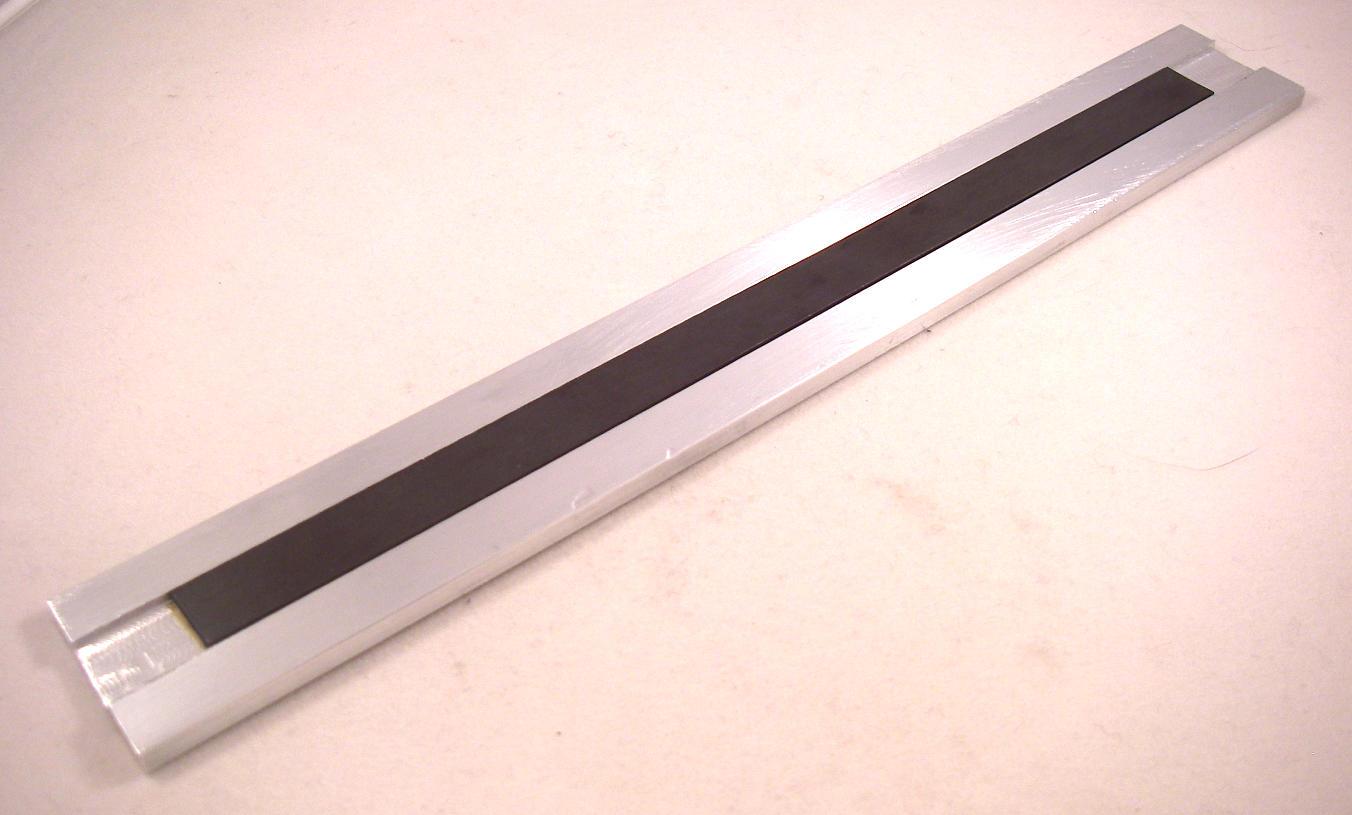

    o  Available mounted on an Aluminum strip or not mounted


Description
The MS12 is a high performance specially magnetize dipole strip material used by the MS23 and MS25U sensor heads.  The material is cut to length.

Related Products
The following products can be used with the IMU6410:

    MS23       Magnetic sensor head - quadrature output

    MS25U    Magnetic sensor head USB 2.0 output.

    Quad3X  3-Axis decoder

    Quad6X  3-Axis decoder

Downloads
The following technical Manuals, datasheets and software downloads are available.

Technical Documentation:
     MS12Technical Brief                 MS12 Technical Brief.pdf

Sensor Datasheets:
      ADS5311 Magnetic Sensor Datasheet      AS5311 Datasheet.pdf
